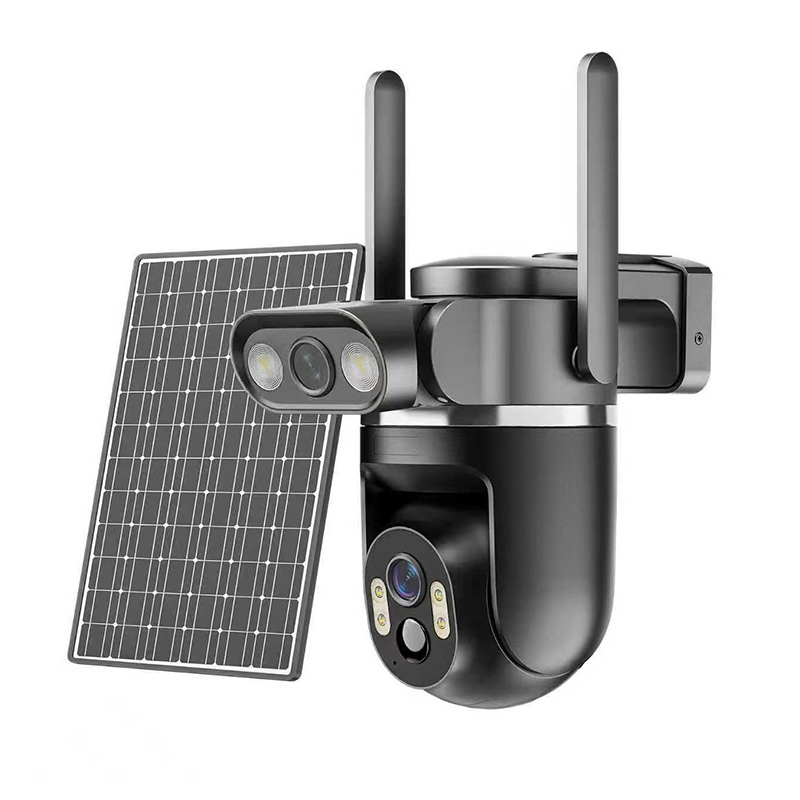

Visinova 4G Solar Outdoor Security Camera（AMG-103）

System

Main Control

Ingenic T32VN

System

Linux/RTOS

Video

Image Sensor

Two 2MP 1080P COMS sensor 1/2.9

Live Stream Preview

HD: 1920×1080/15 fps; SD: 640×360/15 fps

Interpolation

Up to 3MP (Interpolated)

TF Card Recording

1920*1080/15fps(Interpolated to 3MP 2304x1296 @ 15fps) All Micro SD card recordings can be downloaded via the app, except for AOV continuous recordings.

Cloud Video

640*360/15fps, app-anabled cloud video downloads

Video Encoding

H.264/H.265

Filling Light

850nm IR night vision+light full color night vision

Recording Categories

APP TF Card Video Timeline Categories

Purple: AOV Recording Green: Network Wake-up Yellow: Device Power-on Brown: Motion Detected

Audio

Audio Encoding

AAC and G.726

Audio Input

High-Sensitivity Microphone (-38dB)

Audio Output

External Speaker(8Ω/1.5W Max)

Voice Intercom

Supports simplex and full-duplex voice call functions

Night Vision Mode

Super Night Vision

Both AOV capture and alarm/wake-up recording use white light for illumination; AOV night vision capture uses a bright white light.

IR Night Vision

Both AOV capture and alarm/wake-up recording use infrared illumination, AOV night vision capture uses a bright infrared light.

AOV Frame Rate

1，1/2，1/3，1/5，1/10， 1/20，1/30，1/60fps

Default 1/3fps

AOV Recording

Time-lapse Recording

Saves one file every 1200 frames (Frame Rate: 3fps). The file will be saved in advance when an event occurs or the system wakes up.

AOV Performance

AOV Capture Time

Around 100ms

AOV Average Current (1/1FPS)

Around 21ma

AOV Average Current (1/3FPS)

Around 11ma

Detection Wake-up

Supports Person & Vehicle Detection

Network

Network Module

Custom UBIA Low-Power LTE Module (GPS Optional)/2.4GHz Wi-Fi Module

Network Protocols

TCP/IP, HTTP, TCP, UDP, DHCP, DNS, P2P, etc.

Applicable Areas

Supports domestic, american, european, australian, japanese, and global versions.

SIM

Nano SIM

PIR

PIR Specification

Supports Single-Sensor Single-Lens and Dual-Sensor Dual-Lens configurations.

PIR Detection Distance

10 meters, adjustable in 5 steps

False Alarm Filtering

Supports motion detection and false alarm filtering

Supported Modes

PIR trigger is supported in both AOV and Low-Power modes.

Network Configuration Method

Network Configuration Method

Supports Bluetooth addition, QR code scanning addition, and acoustic network pairing.

Recording Mode

Regular Video Recording

Normal frame rate recording

Time-lapse Video Recording

Low frame rate recording (frame rate adjustable)

Video File Management

Supports video playback directly from the TF card or via the app.

Power Supply Method

Built-in Battery

10000mAh Lithium Battery

External Power Supply

8W Solar Panel (Max Charging Current: 2A)

Power Management

Default: AOV shuts off below 20% power consumption, entering low-power mode. AOV stops, but PIR and remote wake-up via app are possible.

Value-added services

4G Data Service

7-day free unlimited data trial, after which you need to recharge.

Cloud Storage Service

Upon first device activation, you can receive a free 1-month cloud storage trial.

Indicator Lights

Device Status Indicator Light

After waking up, the blue light stays on; in AOV mode, the blue light flashes; in low-power mode, the sleep indicator light is off.

Charging Indicator Light

The indicator light is on when charging and off when fully charged.

Other

TF Card Storage

Support TF Card 4GB-128GB

Waterproof Rating

IP67

Working Environment

Operating Temperature

-30℃ ~+60℃

Operating Humidity

≤80%RH

APP

App Name: UboxPro
