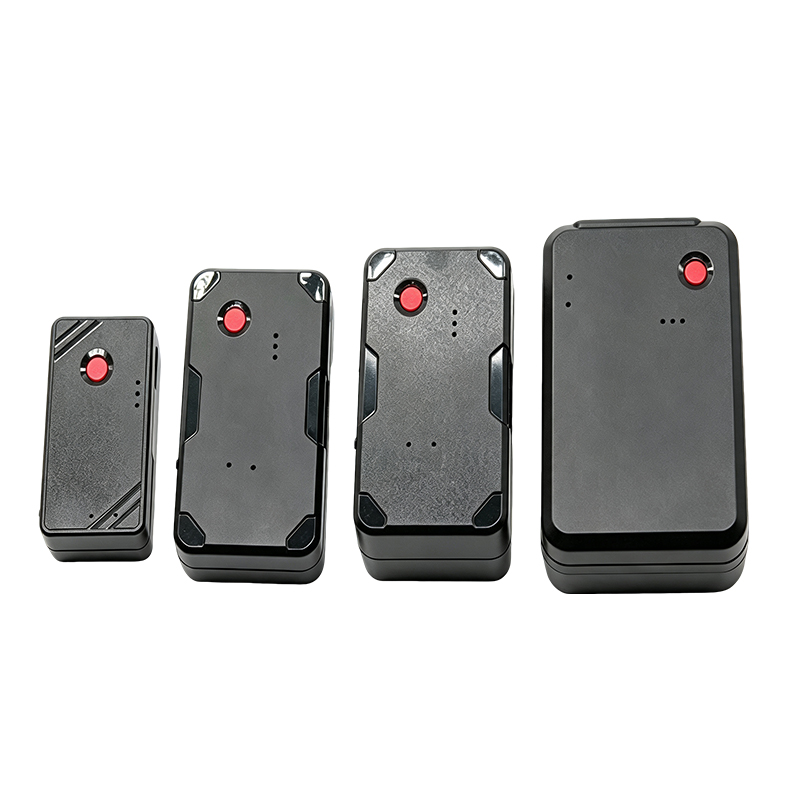

Visinova Magnetic Battery Powered Wireless GPS Tracker（ATG-505）
✅ No wiring required; comes with built-in strong magnet
✅ Real-time location tracking, trajectory playback
✅ GPRS/SMS (Text Message Query Notification) Remote Monitoring
✅ Four batteries with different capacities (1200 mAh/3000 mAh/6000 mAh/10000 mAh)
✅ Excess Speed Alarm, Fence Alarm
✅ Smart power saving, static sleep mode, vibration alert
✅ Multiple working modes are available to switch between
✅ GPS + LB + WIFI – a three-source positioning system
✅ All-in-One Tracking Device for Cars, Loved Ones & Valuables
Specification | Parameters |
Device Dimensions (Bare Unit) | Model A: 57*33*19mm (L*W*D) |
Device Weight | Model A: 40g (bare, no magnet); 76g (packaged) |
Built-in Battery | 1200mAh, 3000mAh, 6000mAh, 10000mAh (3.7V) |
Charging Voltage | DC 5V/600mA (Type-C) |
Operating Temperature | -20°C to +60°C |
Storage Temperature | -20°C to +70°C |
Sensor | Precision vibration sensor |
Frequency Bands | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66 |
Module Brand / Chip Model | SIMCOM A7070SA |
RMSE | S degrees |
Dynamic Output Range | -15~-108dBm |
Receive Sensitivity | -107dBm |
Maximum Frequency Error | ±0.1ppm |
Sensitivity - Cold Start | -147dBm |
Sensitivity - Hot Start | -155dBm |
Sensitivity - Reacquisition | -158dBm |
Sensitivity - Tracking | -160dBm |
Positioning Accuracy | <5m |
Time to First Fix | Cold Start: 32s average |
LTE 4G Antenna | Built-in |
GPS Antenna | Built-in |
LED Indicator | Power, status indication |
Transmission Protocol | TCP |
Power Detection | Indicator lights up when powered on |
Data Reporting | Real-time GPS data update, supports customer customization |
Geo-fencing | TBD |
Driving Behavior Detection | Overspeed alarm when vehicle speed exceeds set limit |
GPS Data | Real-time positioning update |
Vibration Alarm | Vibration alarm when vehicle is in armed state |
